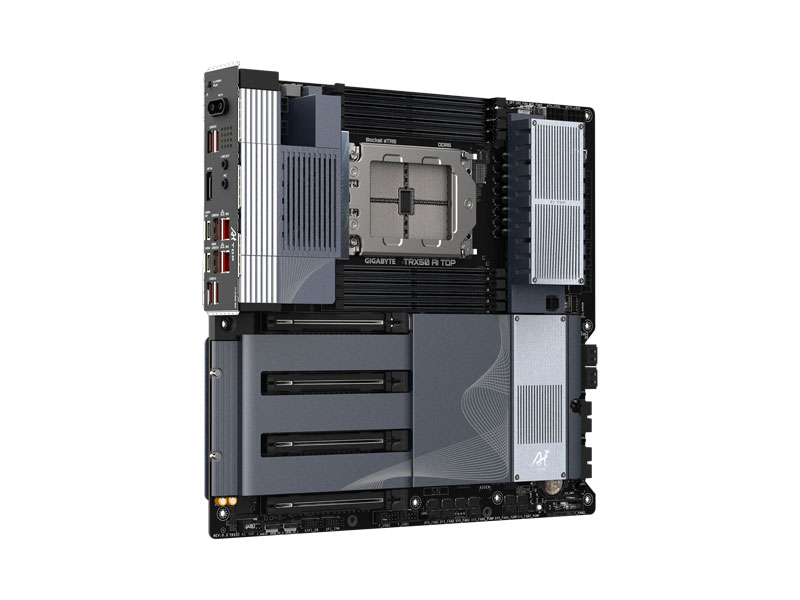

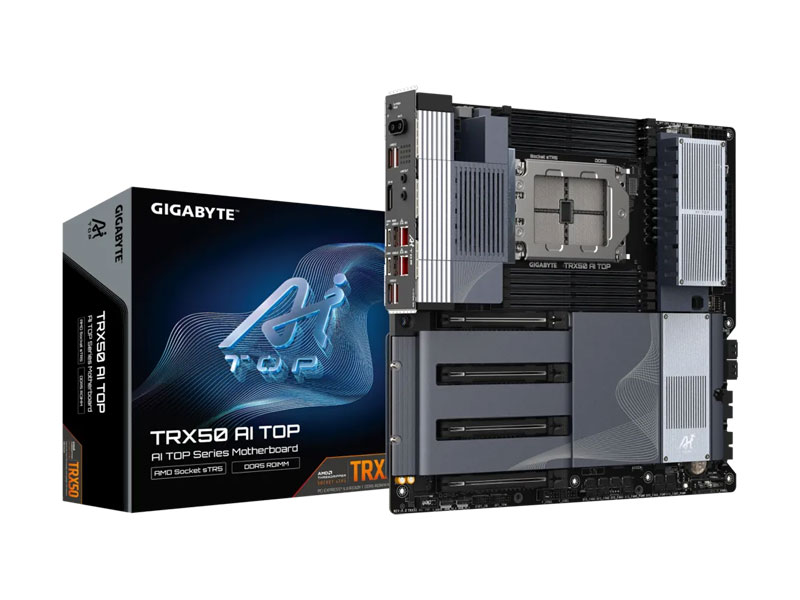

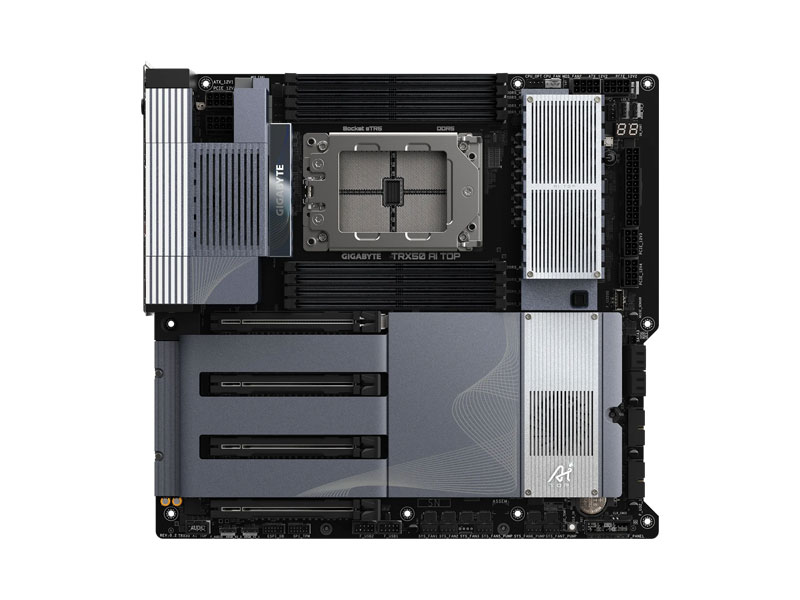

| Mainboard Gigabyte TRX50 AI TOP |
| CPU |
AMD Socket sTR5, support for:
AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors/ AMD Ryzen™ Threadripper™ 9000 Series Processors/ AMD Ryzen™ Threadripper™ PRO 7000-WX Series Processors/ AMD Ryzen™ Threadripper™ 7000 Series Processors |
| Chipset |
AMD TRX50 |
| Bộ nhớ |
Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)
8 x DDR5 DIMM sockets supporting up to 2 TB of system memory
- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support 8-Channel memory architecture
- AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support Quad Channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
|
| Card đồ họa tích hợp |
|
| Âm thanh |
Realtek® ALC4080 CODEC (rear panel audio)
- Support for DTS:X® Ultra
- High Definition Audio
- 2-channel
Realtek® ALC897 CODEC (front panel audio) |
| LAN |
2 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps) |
| Wireless Communication module |
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.) |
| Khe cắm mở rộng |
3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:
- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)
1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:
- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ Threadripper™ 7000 Series Processors support PCIe 4.0 x16 mode |
| Giao diện lưu trữ |
3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x4/x2 SSD
- AMD Ryzen™ Threadripper™ 7000 Series Processors support PCIe 4.0 x4/x2 SSD
1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x4/x2 SSD
* The M2D_CPU connector will become unavailable when using the AMD Ryzen™ Threadripper™ 9000/7000 Series Processors.
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices |
| USB |
CPU:
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+Intel® USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Kết nối I/O bên trong |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x PCIe power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Clear CMOS button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper |

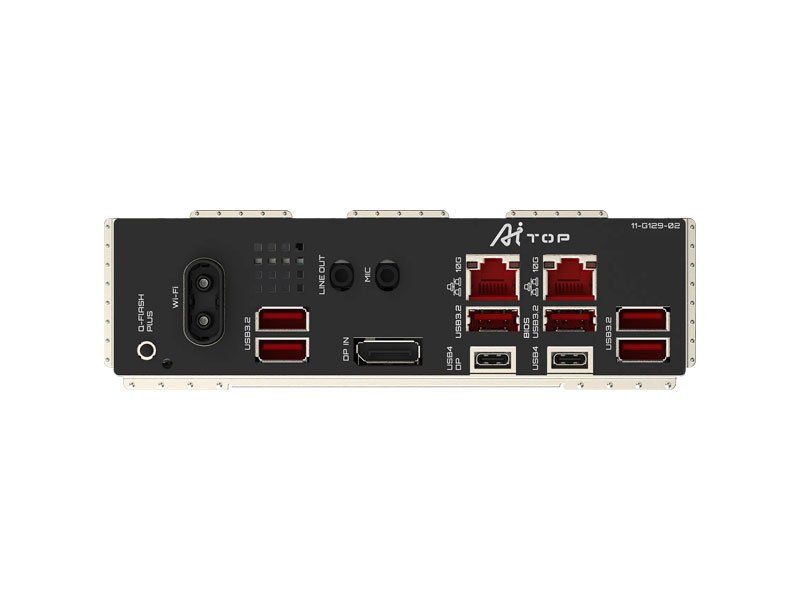

| Kết nối bảng phía sau |
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort In port
1 x USB4® USB Type-C® port (DisplayPort)
1 x USB4® USB Type-C® port
6 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 port
2 x audio jacks |
| Điều khiển I/O |
iTE® I/O Controller Chip |
| Theo dõi phần cứng |
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Noise detection |
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Tính năng duy nhất |
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup |
| Gói phần mềm |
Norton® Internet Security (OEM version)
LAN bandwidth management software
|
| Hệ điều hành |
Support for Windows 11 64-bit
Support for Ubuntu 24.04 LTS |
| Hệ số khuôn |
E-ATX Form Factor; 30.5cm x 33.0cm |
